Linkfar EasyArm Compact
Arm-In Design
- The inflatable cuff is built into the arm tube.
- Insert the upper arm instead of wrapping a separate cuff.
- An elbow positioning switch helps place the arm correctly.
One-Button Measurement
- A single button starts the measurement.
- Step-down oscillometric measurement with an automatic cuff tightening mechanism.
Voice Announcement and Large Display
- Readings are announced by voice and shown on a large, clear display.
- The monitor switches off after 60 seconds without operation.
2 × 99 Memories
- Two users can each store up to 99 readings.
- Records stay separate for each user.

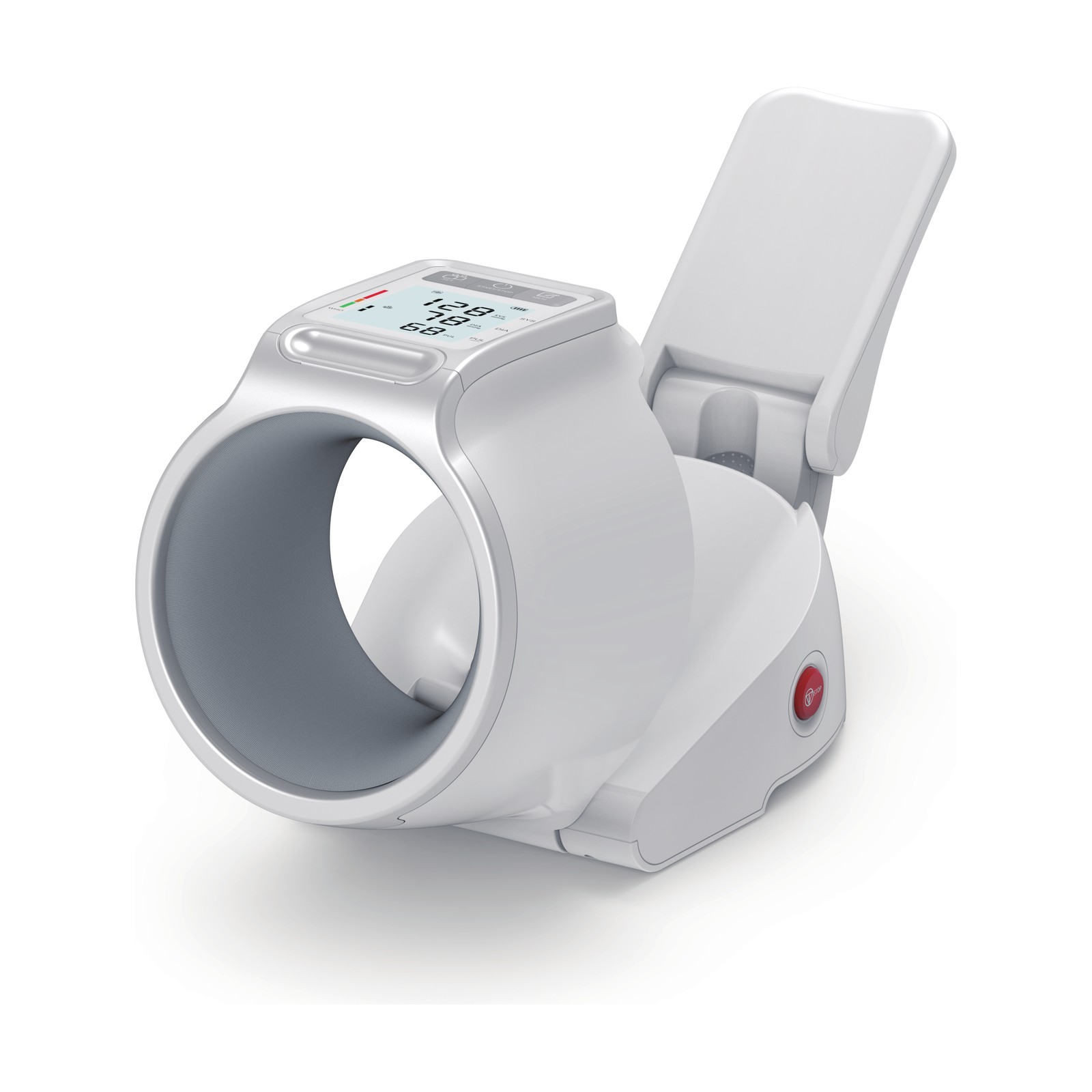

Arm-in Upper Arm Blood Pressure Monitor. Integrated cuff with a top-mounted display. Model: CH-S693L.
The Linkfar EasyArm Compact is a fully automatic upper-arm blood pressure monitor with the cuff built into an arm tube. You insert your arm, press one button and the monitor measures and announces the result. The display sits on top of the arm tube, and the base stays compact. It fits arm circumferences from 18 to 42 cm and stores 2 × 99 readings.
The Linkfar EasyArm Compact is manufactured by Cemho Medical Technology (Guangdong) Co., Ltd. and offered in cooperation with Linkfar Healthcare GmbH. Based in Düsseldorf, Germany, Linkfar is Cemho's core distribution partner for the European Union and your point of contact for enquiries, samples and project support in the EU market.
Specifications
| Parameter | Linkfar EasyArm Compact |
|---|---|
| Manufacturer | Cemho Medical Technology (Guangdong) Co. Ltd. |
| Model | CH-S693L |
| Measurement method | Oscillometric |
| Pressure measuring range | 0–295 mmHg (0.0–39.33 kPa) |
| Pulse rate measuring range | 40–199 beats/min |
| Maximum permissible error / cuff pressure | ±3 mmHg (±0.4 kPa) |
| Maximum permissible error / pulse rate | ±5% |
| Resolution | 1 mmHg / 0.1 kPa |
| Applicable arm circumference | 18–42 cm |
| Dimensions (L × W × H) | 189 × 263 × 233 mm |
| Net weight | approx. 1.5 kg |
| Memory | 2 users × 99 readings |
| Working voltage | DC 5 V / 2 A |
| Battery capacity | 2000 mAh |
| Operating conditions | 5–40 °C; 15–80% RH; 80–105 kPa |
| Transport and storage | −20 to +55 °C; ≤93% RH |
