Linkfar Arterial Blood Gas Syringe – Standard
Pre-Heparinised with Lithium Heparin
- Each syringe contains lithium heparin: 60 IU in the 1 ml size and 96 IU in the 3 ml size.
- No anticoagulant needs to be drawn up at the bedside.
Complete Sampling Kit
- Green rubber block for the needle after sampling.
- Waste-blood collection bottle with a sealed air-filtration device.
- White sealing cap to close the syringe once the needle is removed.
Six Clear Steps to the Analyser
- Puncture, collect, park the needle in the green rubber, remove the needle and fit the sealing cap, squeeze waste blood into the bottle, then send the sample for testing.
- The step-by-step diagram is in the image gallery.
Wide Needle and Volume Range
- 1 ml or 3 ml, needles from 0.5 to 0.8 mm (25G–21G) and 16 to 38 mm long, regular or thin wall, short bevel.
- Latex or latex-free plunger gasket, blister or PE packing.
Pre-Heparinised Arterial Blood Gas Syringe for Blood Gas Analysis. Standard version, 1 ml and 3 ml. Item code: 207LC.

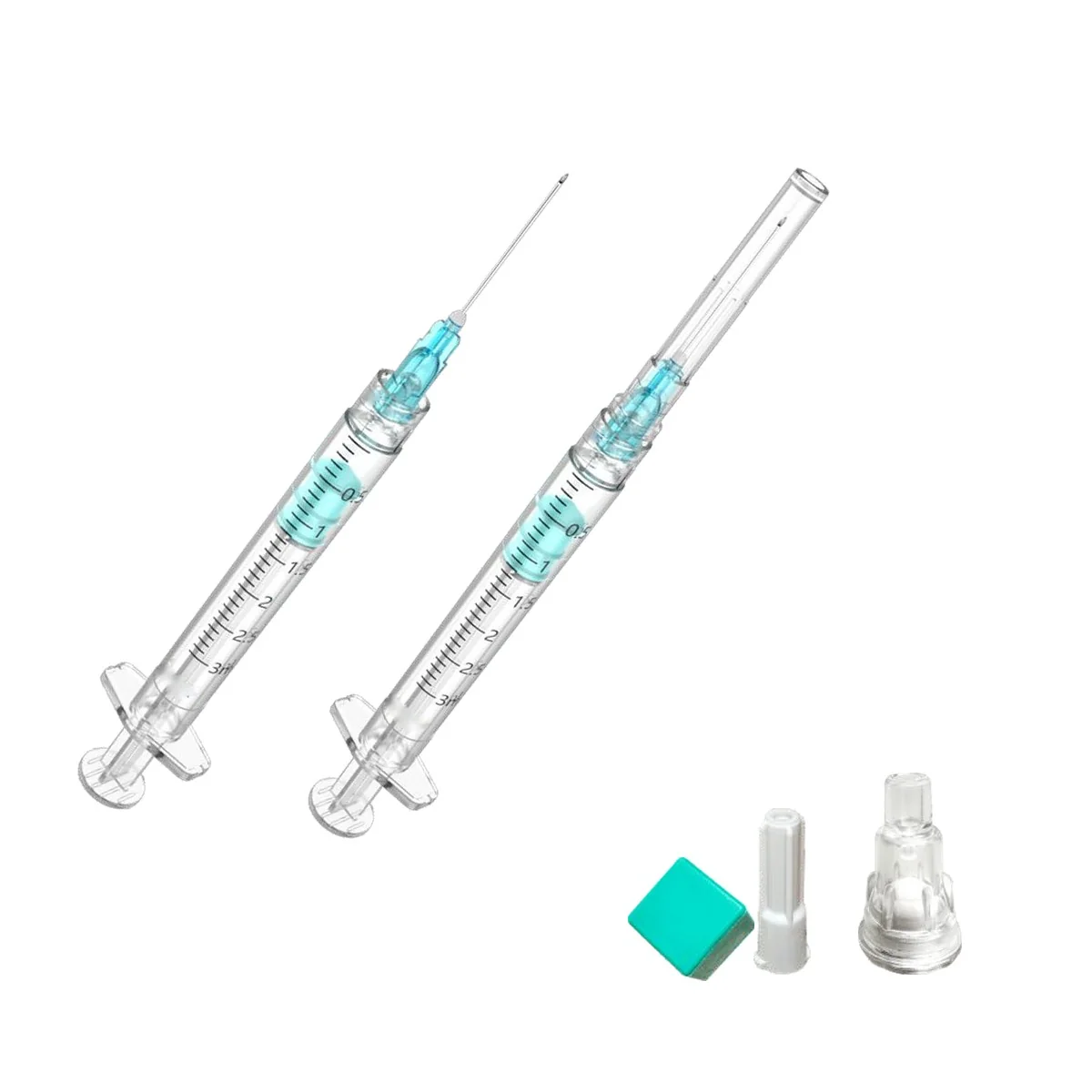

The Linkfar Arterial Blood Gas Syringe is a single-use syringe for collecting arterial blood samples for blood gas analysis. It comes pre-filled with lithium heparin, so the sample is anticoagulated as soon as it is drawn. Each kit includes a green rubber needle block, a waste-blood collection bottle with a sealed air-filtration device and a white sealing cap.
You can choose the syringe volume (1 ml or 3 ml), the needle diameter (0.5–0.8 mm, 25G–21G), the needle length (16–38 mm), the wall type, the gasket and the packing to match your sampling protocol and your blood gas analyser. If you need needle protection, see the Linkfar Safety Arterial Blood Gas Syringe. The syringe is for professional use by trained healthcare staff.
Linkfar Healthcare GmbH in Düsseldorf, Germany, is your point of contact for enquiries, configuration questions and quotations.
Specifications
| Parameter | Linkfar Arterial Blood Gas Syringe – Standard |
|---|---|
| Item code | 207LC |
| Product type | Pre-heparinised arterial blood gas syringe / single use |
| Nominal capacity | 1 ml / 3 ml |
| Anticoagulant | Lithium heparin |
| Heparin content | 60 IU (1 ml) / 96 IU (3 ml) |
| Needle outer diameter | 0.5 / 0.55 / 0.6 / 0.7 / 0.8 mm (25G / 24G / 23G / 22G / 21G) |
| Needle length | 16 / 25 / 28 / 32 / 38 mm (by diameter) |
| Needle wall | Regular wall (0.5 and 0.55 mm) / thin wall (0.6–0.8 mm) |
| Needle tip | Short bevel |
| Plunger gasket | Latex or latex-free |
| Packaging | Blister or PE packing |
| Kit components | Syringe with needle / green rubber needle block / waste-blood collection bottle with sealed air-filtration device / white sealing cap |
| Intended users | Trained healthcare professionals |
